SUPER PRIMA - Non Auto Leveller Drawframes
SD100e and SDL100e: Advanced Drafting Systems
Memory updated Here’s a combined content draft for the SD100e and SDL100e models, integrating the key features: SD100e and SDL100e: Advanced Drafting Systems The SD100e and SDL100e are cutting-edge drafting systems engineered for high efficiency and precise control in textile manufacturing.
Both models are equipped with advanced technologies to meet the demands of modern spinning processes.
To see our videos – Click here
Specification
| Technical Data | |
|---|---|
| Draft range from | 4 to 10 |
| Range of staple length | upto 75mm |
| Delivery hank | upto 0.200 |
| Main motor | 7.5Kw |
| Section motor | 1.5Kw |
| Can change motor | 0.37Kw |
| delivery hank | upto 6100Kgs/day |
| Production Data | |
|---|---|
| Production @ 90% Efficiency in Ring Spinning Counts at 0.10 Sliver Hank | 600RPM = 4580 kg/day 650 RPM = 4400 kg/day |
| Production @ 80% Efficiency in Open End Counts at 0.10 Sliver Hank | 550 RPM = 3730 kg/day 650 RPM = 4400 kg/day |
| Power Installation Data | |
|---|---|
| Normal Rating of Main Drivers Motors a) Main Motor b) Servo Motor | 5.5 K.W 3.0 K.W |
| Normal Rating of Auxiliary Motors a) Suction Motor b) Can Change Motor | 1.5 K.W 0.37 K.W |

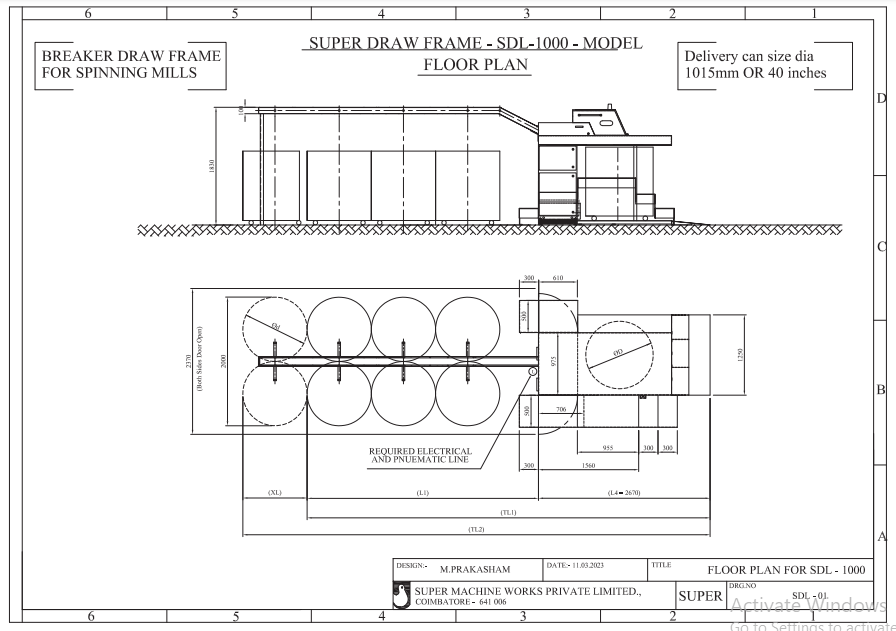

Layout
